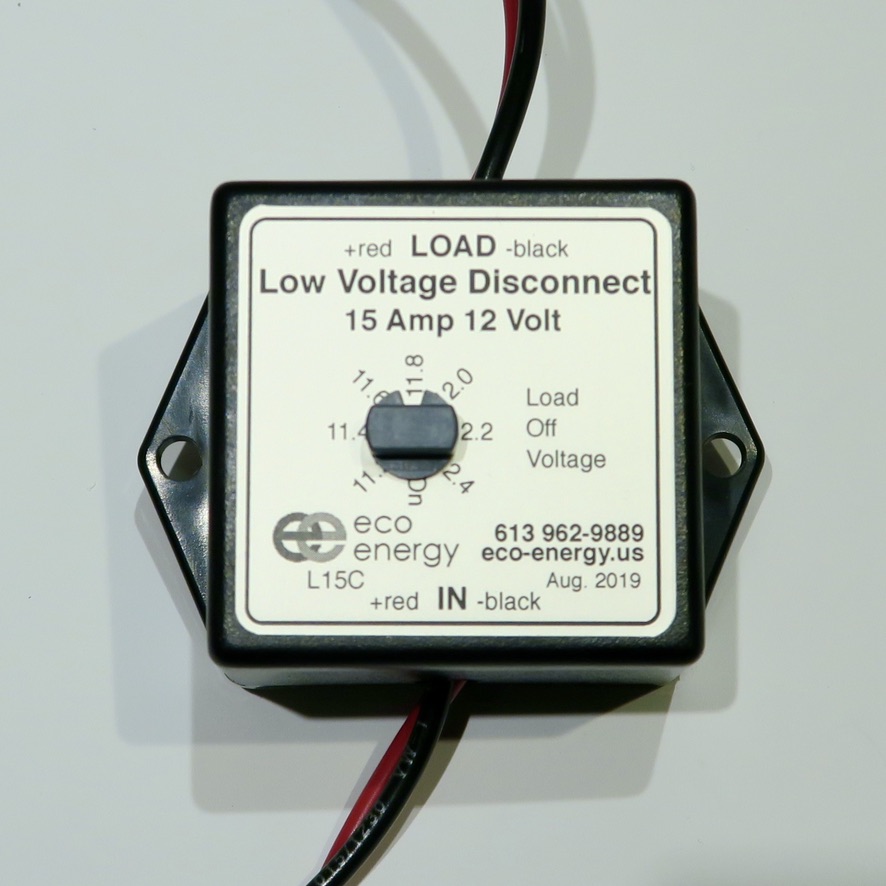

L15C Control
L15C / L15D
  • 15 Amp
  • 12 or 24 Volts
  • 60 sec. time delay
  • Temperature Compensation Option
  • L15D - lower voltage range 9-11.5V

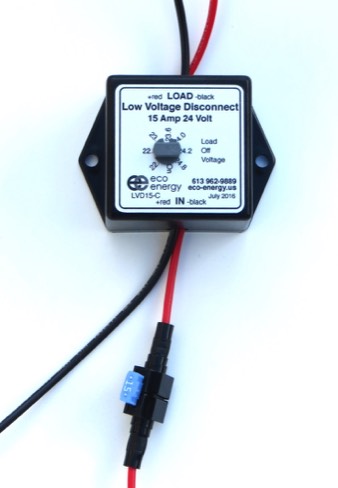

L15C With Fuse
Stacks Image 739
Features
  • 5 year warranty
  • Voltage adjustment switch on front
  • Includes 15 Amp fuse
  • Encapsulated in epoxy potting
  • Manufactured with solar power
  • Designed and built in North America
General Specifications
Temperature range -40°C to 50°C / -40°F to 120°F
Case ABS case, sealed in epoxy
Weight 100 grams, 3.5 oz.
Size (H x W x D) 5.1 x 5.1 x 3.8 cm (2 x 2 x 1.5 in. / 3 inches wide with the tabs)
Wire 16 gauge leads, 15 cm (6 in)
Electrical Specifications
L15C Setpoints 11.2 to 12.4V Off, On approx. 1 volt above Off setpoint (24V 22.4-24.8V Off, On approx 2V above)
L15D Setpoints 9.0 to 11.4V Off, On approx. 1 volt above Off setpoint. (24V 18.0-22.8V Off, On approx 2V above)
Consumption Standby - 0.6 mA / On - 2.5 mA
Maximum input 40 volts (12V control), 60V (24V control)
Maximum load current 15 Amps DC
Options
  • Temperature compensation
  • Custom voltage setpoints
  • Custom time delay
  • Custom wire lead lengths
Purchasing
  • $56 USD
  • Contact us or one of our retailers to order
