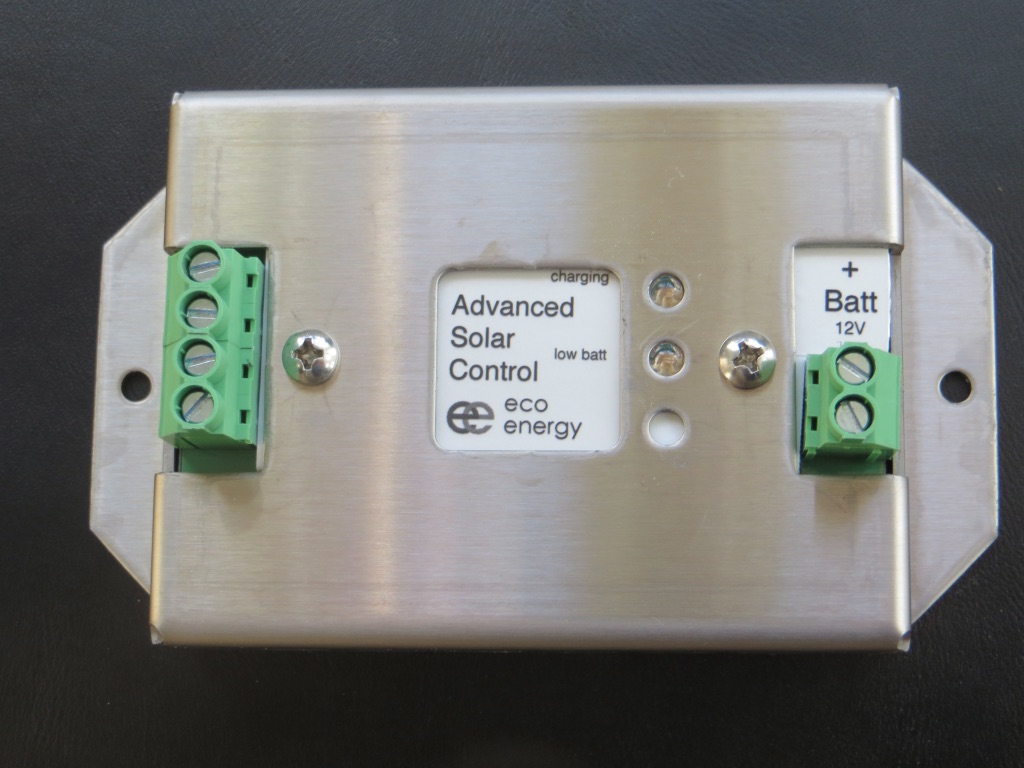

S10L10-L
- 10 Amps
- 10 Amp
- 12 or 24 Volts
- Solar Clock
Load can be factory set to turn on and off using the solar clock or dusk to dawn
Features
- 5 year warranty
- 3 stage PWM charging with float mode
- Temperature compensation
- Manufactured with solar power
- Designed and built in North America
General Specifications
| Temperature range | -40°C to 50°C / -40°F to 120°F |
| Case | Stainless steel |
| Weight | 440 grams / 15.6 oz. |
| Size (H x W x D) | 8 x 14 x 4.5 cm / 3.125 x 5.5 x 1.75 in. |
| Terminals | 12-24 AWG |
| Solar LED | 3 flashes charging, 2 flashes at Bulk Voltage, 1 flash in Float Mode |
| Load LED | 1 flash voltage low, 2 flashes load disconnected |
Electrical Specifications
| Voltage configurations | 12 or 24 volts (custom voltages from 6 to 36 volts) |
| Consumption | 0.2 mA at night, 0.6 mA daytime standby, 2.5 mA when charging |
| Maximum input | 25 volts (12V control), 50 volts (24V control) |
| Maximum charging current | 10 Amps DC |
| Typical charging set points | Bulk: 14.4 Volts, Float: 13.6 Volts, temperature compensated (custom voltages available) |
| Regulation method | Pulse Width Modulation (PWM), Positive side switching |
| Maximum load current | 10 Amps DC |
| Typical load set points | 13.0 Volts On: 12.0 Volts Off, 60 seconds at or beyond setpoint (custom voltages available) |
Options
- Temperature compensation off
- Custom voltage setpoints
- Lithium battery protection (no charging below 4°C)
Purchasing
- $149 USD
- Contact us or one of our retailers to order
