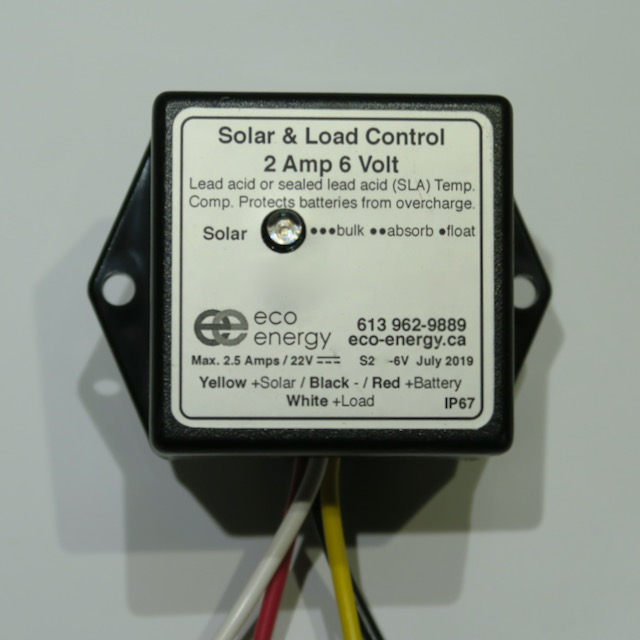

S2-6V Control
S2-6V
  • 2 Amp
  • 6 Volts
Features
  • 5 year warranty
  • Automatic night time shutdown
  • 3 stage PWM charging with float mode
  • Temperature compensation
  • Fully encapsulated in epoxy potting
  • Manufactured with solar power
  • Designed and built in North America
General Specifications
Temperature range -40°C to 50°C / -40°F to 120°F
Case ABS case, completely sealed in epoxy
Weight 90 grams / 3.2 oz.
Size (H x W x D) 5.1 x 5.1 x 3.8 cm / 2 x 2 x 1.5 in. (3 inches wide with the tabs)
Wire 18 AWG, 15 cm / 6 in.
Solar LED 3 flashes charging, 2 flashes at Bulk Voltage, 1 flash in Float Mode
Electrical Specifications
Voltage configurations 6 volts
Consumption 0.2 mA at night, 0.6 mA daytime standby, 2.5 mA when charging
Maximum input 25 Volts
Maximum charging current 2.5 Amps DC
Typical charging set points Bulk: 7.2 Volts, Float: 6.8 Volts, temperature compensated (custom voltages available)
Pulse Width Modulation (PWM) Regulation method, positive side switching
Options
  • Temperature compensation off
  • Custom voltage setpoints
  • Custom wire lead lengths
  • Lithium battery protection (no charging below 4°C)
Purchasing
  • $49 USD
  • Contact us or one of our retailers to order
