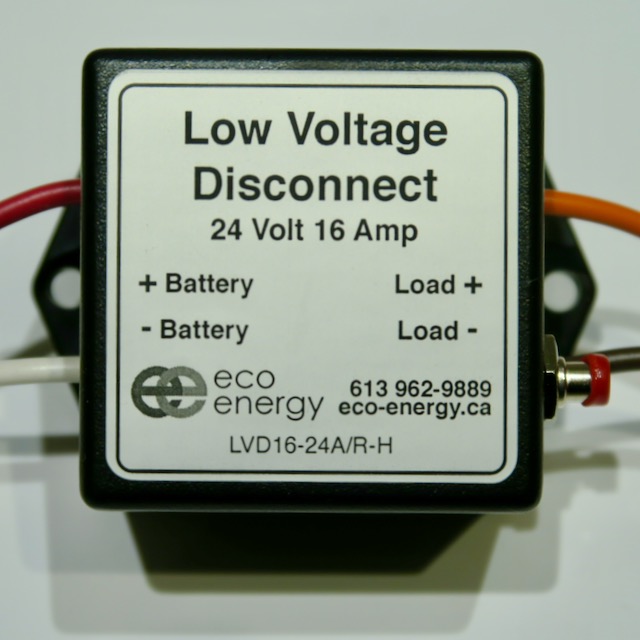

LVD16 Control
LVD16
  • 16 Amp
  • 12 or 24 Volts
Designed for use with a Thermal Electric Generator (TEG)
Features
  • 5 year warranty
  • Manufactured with solar power
  • Designed and built in North America
General Specifications
Temperature range -40°C to 50°C / -40°F to 120°F
Case ABS case, sealed in epoxy (except for voltage adjustment on back)
Weight 125 g. / 4.4 oz.
Size (H x W x D) 5.1 x 5.1 x 3.8 cm (2 x 2 x 1.5 in. / 3 inches wide with the tabs)
Wire 16 AWG, 38 cm / 15 in.
Electrical Specifications
Voltage configurations 12 or 24 volts
Consumption Off 1.5mA, On 92ma (12V), On 44 mA (24V)
Maximum load current 16 Amps DC
Typical load set points On: 13.3 Volts Off: 12.0 Volts / On: 26.6 Volts Off: 24.0 Volts (user adjustable)
Options
  • Custom voltage setpoints
  • Custom wire lead lengths
Purchasing
  • $87 USD
  • Contact us or one of our retailers to order
