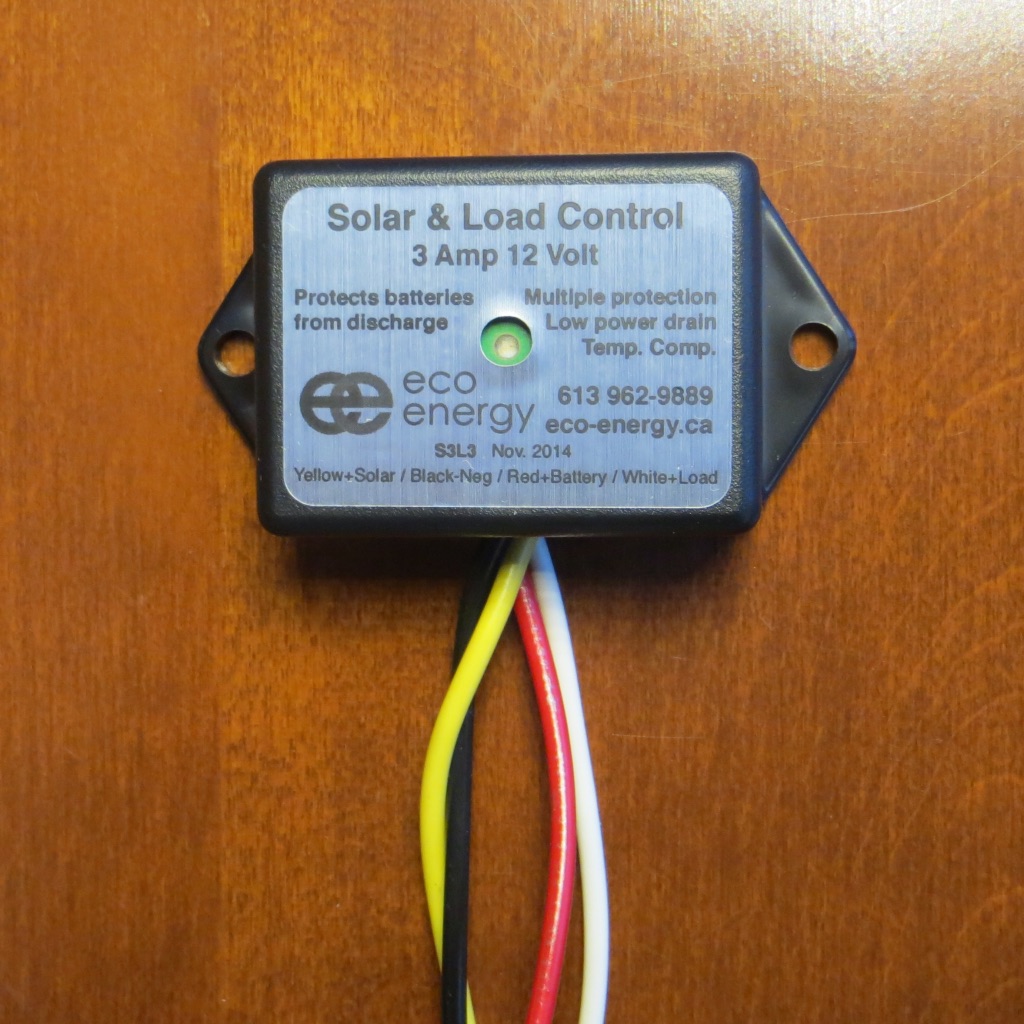

S3L3-L
- 3 Amp
- 3 Amp
- 12 or 24 Volt
Features
- 5 year warranty
- 3 stage PWM charging with float mode
- Temperature compensation
- Fully encapsulated in epoxy potting
- Manufactured with solar power
- Designed and built in North America
General Specifications
| Temperature range | -40°C to 50°C / -40°F to 120°F |
| Case | ABS case, completely sealed in epoxy |
| Weight | 50 g / 2oz. |
| Size (H x W x D) | 3.8 x 7.0 x 3.1 cm / 1.5 x 2.75 x 1.3 in. |
| Wire | 18 AWG, 15 cm / 6 in. |
| Mounting | Wall mountable |
| Solar LED | 3 flashes charging, 2 flashes at Bulk Voltage, 1 flash in Float Mode |
Electrical Specifications
| Voltage configurations | 12 or 24 volts (custom voltages from 6 to 36 volts) |
| Consumption | 0.2 mA at night, 0.6 mA daytime standby, 2.5 mA when charging |
| Maximum input | 25 volts (12V control), 50 volts (24V control) |
| Maximum charging current | 3 Amps DC |
| Typical charging set points | Bulk: 14.4 Volts, Float: 13.6 Volts, temperature compensated |
| Maximum load current | 3 Amps DC |
| Typical load set points | On 13.0V, Off 12.0V, 60 seconds at or beyond setpoint, temperature compensated |
| Regulation method | Pulse Width Modulation (PWM), Positive side switching |
Options
- Temperature compensation off
- Custom voltage setpoints
- Custom wire lead lengths
- Lithium battery protection (no charging below 4°C)
Purchasing
- $59 USD
- Contact us or one of our retailers to order
