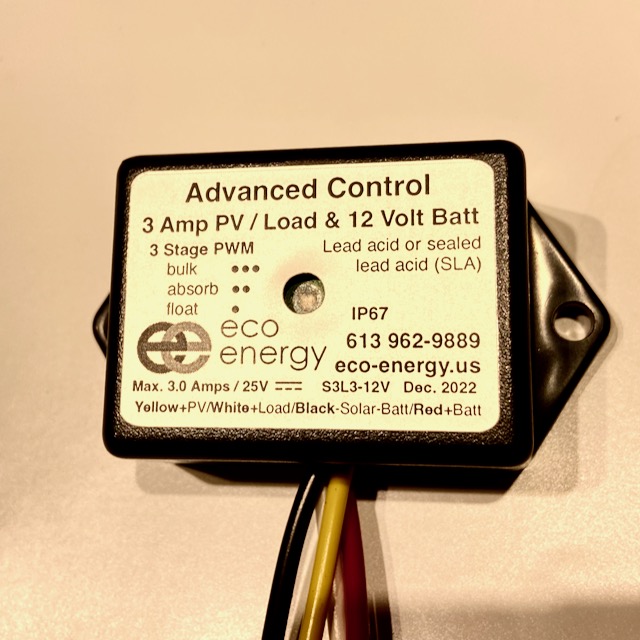

S3L3
- 3 Amp
- 2 Amp
- 12 or 24 Volts
Features
- Protection (solar and battery), against short-circuit* and reverse polarity*, overload, over temperature, and battery removal (*except 24V model)
- Extreme design –40° to +50°C (-40° to +120°F)
- Temperature compensation
- Reliable - 100% solid state
- Fully encapsulated in epoxy potting
- 5 year warranty
- Manufactured with solar power
- Designed and built in North America
- Automatic night time shutdown
- 3 stage PWM charging with Float model
General Specifications
| Temperature range | -40°C to 50°C (-40°F to 120°F) |
| Case | ABS case, completely sealed in epoxy |
| Weight | 50 g (approx. 2oz) |
| Size (H x W x D) | 3.8 x 7.0 x 3.1 cm (1.5 x 2.75 x 1.3 in) |
| Wire | 18 gauge leads, 5 in long |
| Mounting | Wall mountable |
| Status light | 1 LED (3 flashes charging, 2 flashes at Bulk Voltage, 1 flash in Float Mode) |
Electrical Specifications
| Voltage configurations | 12 or 24 volts (custom voltages from 6 to 36 volts) |
| Consumption | 0.7mA, 2.5 mA when charging or load on, 4 mA load and charging |
| Maximum input | 40 volts (12V control), 60V (24V control) |
| Maximum charging current | 3 Amps DC |
| Typical set points | Bulk: 14.4 Volts, Float: 13.6 Volts, temperature compensated (custom voltages available) |
| Pulse Width Modulation (PWM) | Regulation method, positive side switching |
Options
- PWM Off (to ensure no radio interference)
- Temperature compensation off
- Custom voltage setpoints
- Custom wire lead lengths
- Lithium battery protection (no charging below 4°C)
Purchasing
- $59 USD
- Contact us or one of our retailers to order
