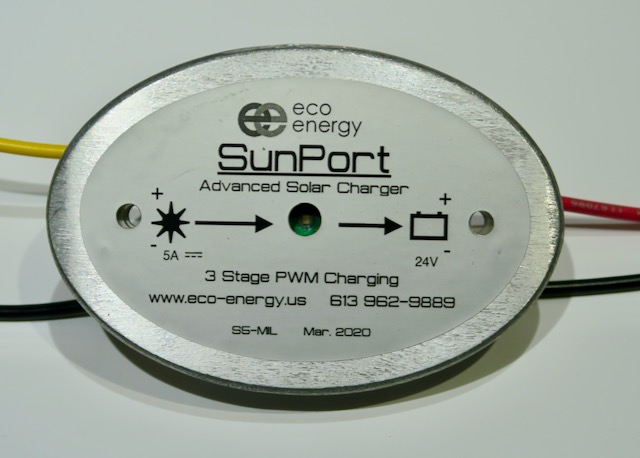

S5-MIL Control
S5-MIL
  • 5 Amp
  • 12 or 24 Volt
Features
  • 5 year warranty
  • Automatic night time shutdown
  • 3 stage PWM charging with float mode
  • Temperature compensation
  • Fully encapsulated in epoxy potting
  • Manufactured with solar power
  • Designed and built in North America
General Specifications
Temperature range -40°C to 50°C / -40°F to 120°F
Case Aluminium oval case, completely sealed in epoxy
Weight 140 grams / 5oz.
Size (H x W x D) 6.7 x 9.6 x 1.8 cm / 2.6 x 3.8 x 0.8 in.
Wire 16 AWG, 15 cm / 6 in.
Solar LED 3 flashes charging, 2 flashes at Bulk Voltage, 1 flash in Float Mode
Electrical Specifications
Voltage configurations 12 or 24 volts (custom voltages from 10 to 36 volts)
Consumption 0.2 mA at night, 0.6 mA daytime standby, 2.5 mA when charging
Maximum input 25 volts (12V control), 50 volts (24V control)
Maximum charging current 3 Amps DC
Typical charging set points Bulk: 14.4 Volts, Float: 13.6 Volts, temperature compensated (custom voltages available)
Regulation method Pulse Width Modulation (PWM), Positive side switching
Options
  • Temperature compensation off
  • Custom voltage setpoints
  • Custom wire lead lengths
  • Lithium battery protection (no charging below 4°C)
Purchasing
  • $89 USD
  • Contact us or one of our retailers to order
