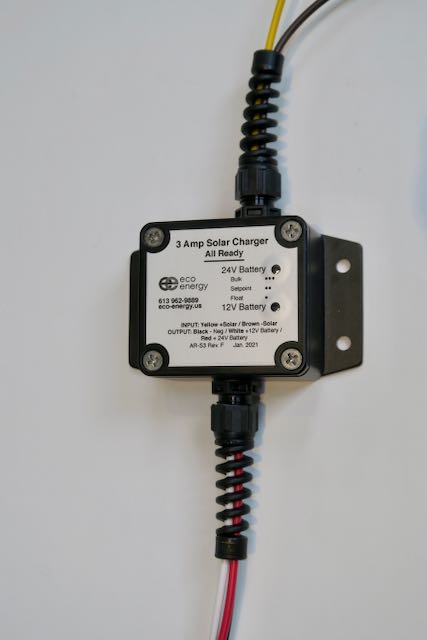

AR-S3
All Ready Solar 3 Amp
- 3 Amp
- 24 Volt (2 x 12V batteries)
Use a single 12 volt solar panel to keep the batteries charged in a 24V system (two 12V batteries or battery banks in series), and provides automatic balancing.
Charges one battery for an hour and then switches to the other battery.
Charges one battery for an hour and then switches to the other battery.

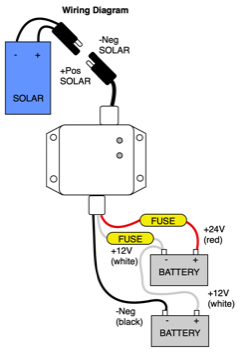

Wiring Diagram
Features
- 5 year warranty
- Automatic night time shutdown
- 3 stage PWM charging with float mode
- Temperature compensation
- Fully encapsulated in epoxy potting
- Manufactured with solar power
- Designed and built in North America
General Specifications
| Temperature range | -40°C to 50°C / -40°F to 120°F |
| Case | Aluminium, completely sealed in epoxy |
| Weight | 330 g / 11.6 oz. |
| Size (H x W x D) | 5.8 x 9.5 x 3.5 cm / 2.3 x 3.75 x 1.4 in. |
| Wire | 18 AWG, solar 10 in., battery 32 in. |
| Charging LEDs | 3 flashes charging, 2 flashes at Bulk Voltage, 1 flash in Float Mode |
Electrical Specifications
| Voltage configuration | 24 volts |
| Consumption | 0.2 mA at night, 0.6 mA daytime standby, 2.5 mA when charging |
| Maximum solar input | 25 volts |
| Maximum current | 5 Amps DC |
| Typical charging set points | Bulk: 14.4 Volts, Float: 13.6 Volts, temp. compensated per battery (bulk 28.8V, and float 27.2V) |
| Regulation method | Pulse Width Modulation (PWM), Positive side switching |
Options
- Temperature compensation off
- Custom voltage setpoints
- Custom wire lead lengths
- Lithium battery protection (no charging below 4°C)
Purchasing
- $249 USD
- Contact us or one of our retailers to order
