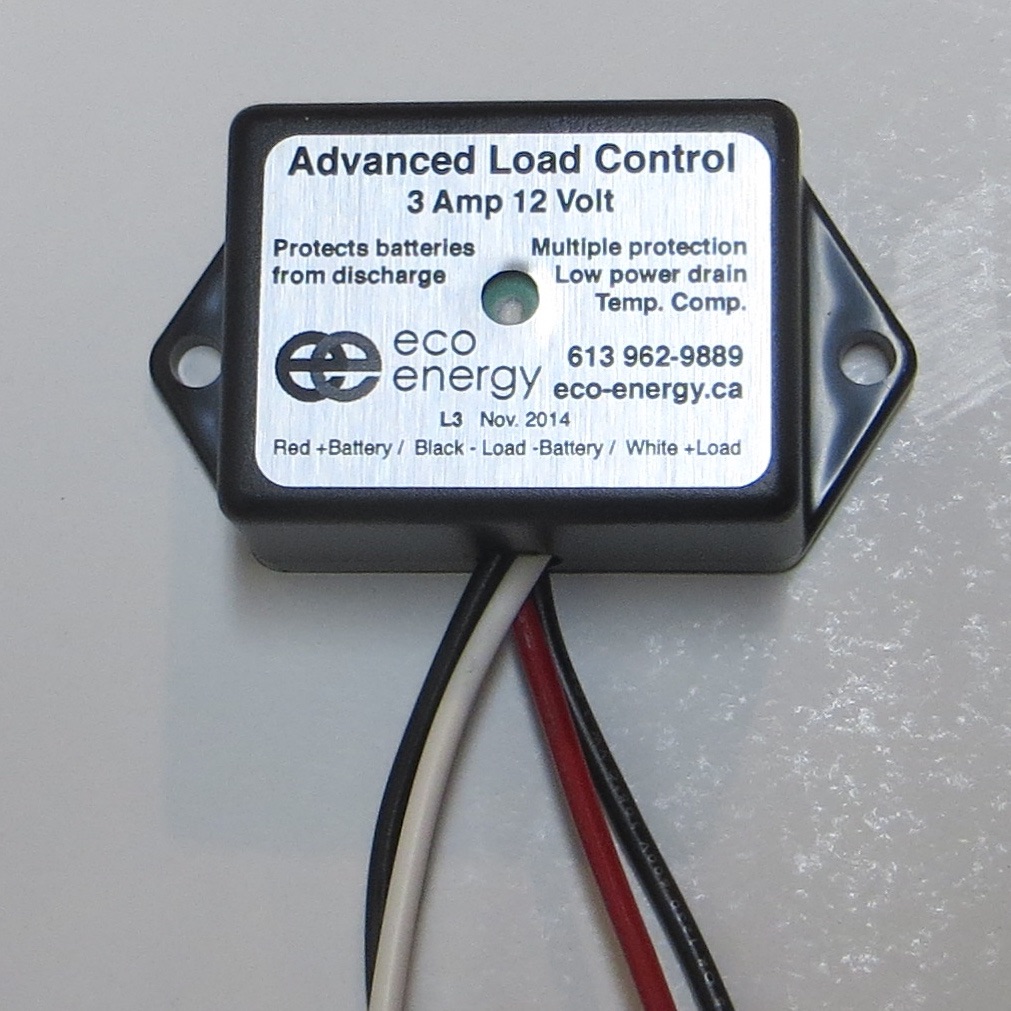

L3
- 3 Amp
- 12 or 24 Volts
- 60 sec. time delay
Features
- 5 year warranty
- Temperature compensation
- Fully encapsulated in epoxy potting
- Manufactured with solar power
- Designed and built in North America
General Specifications
| Temperature range | -40°C to 50°C / -40°F to 120°F |
| Case | ABS case, completely sealed in epoxy |
| Weight | 50 g / 2oz. |
| Size (H x W x D) | 3.8 x 7.0 x 3.1 cm / 1.5 x 2.75 x 1.3 in. |
| Wire | 18 gauge leads, 15 cm (6 in) |
| Load LED | 1 flash voltage low, 2 flashes load disconnected |
Electrical Specifications
| Voltage configurations | 12 or 24 volts (custom voltages from 10 to 36 volts) |
| Consumption | Standby - 0.6 mA, On - 2.3 mA |
| Maximum input | 40 volts (12V control), 60V (24V control) |
| Maximum load | 3 Amps DC |
| Typical load set points | 13.0 Volts On: 12.0 Volts Off, 60 seconds at or beyond setpoint (custom voltages available) |
Options
- Temperature compensation off
- Custom voltage setpoints
- Custom time delay
- Custom wire lead lengths
Purchasing
- $38 USD
- Contact us or one of our retailers to order
